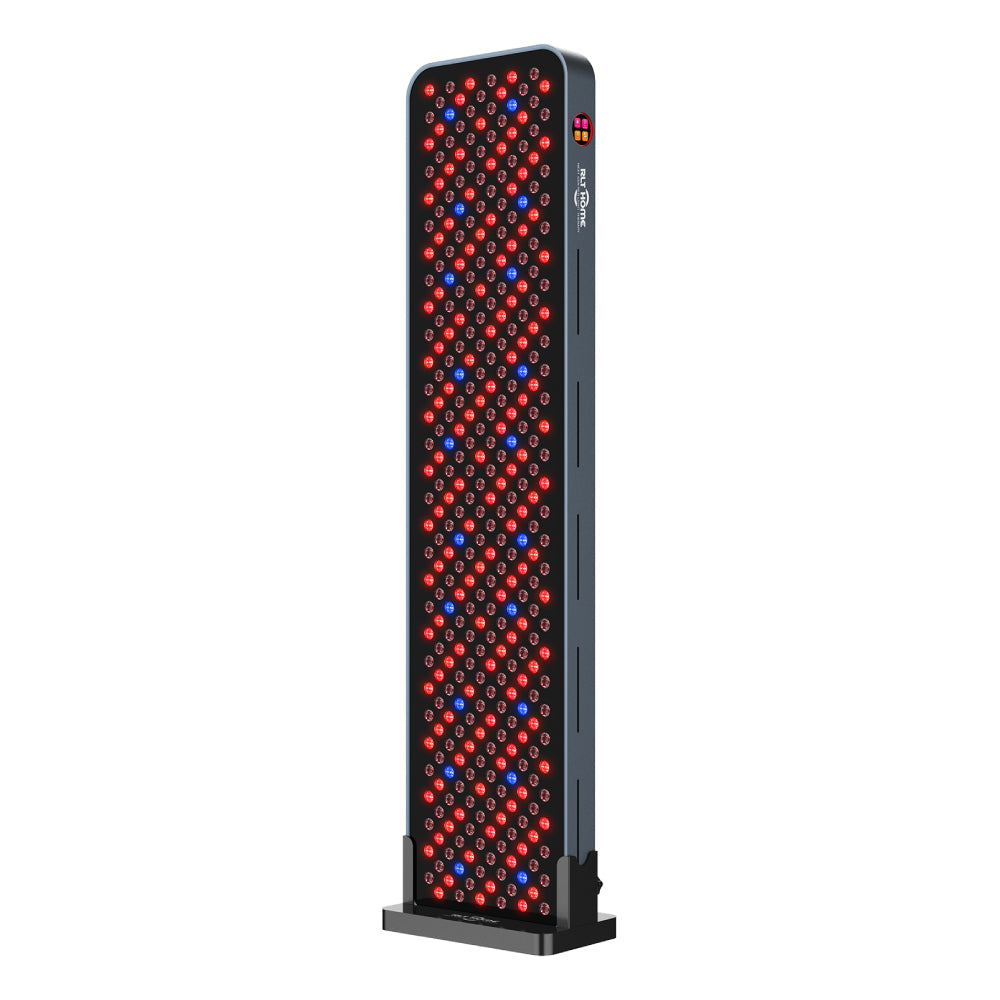

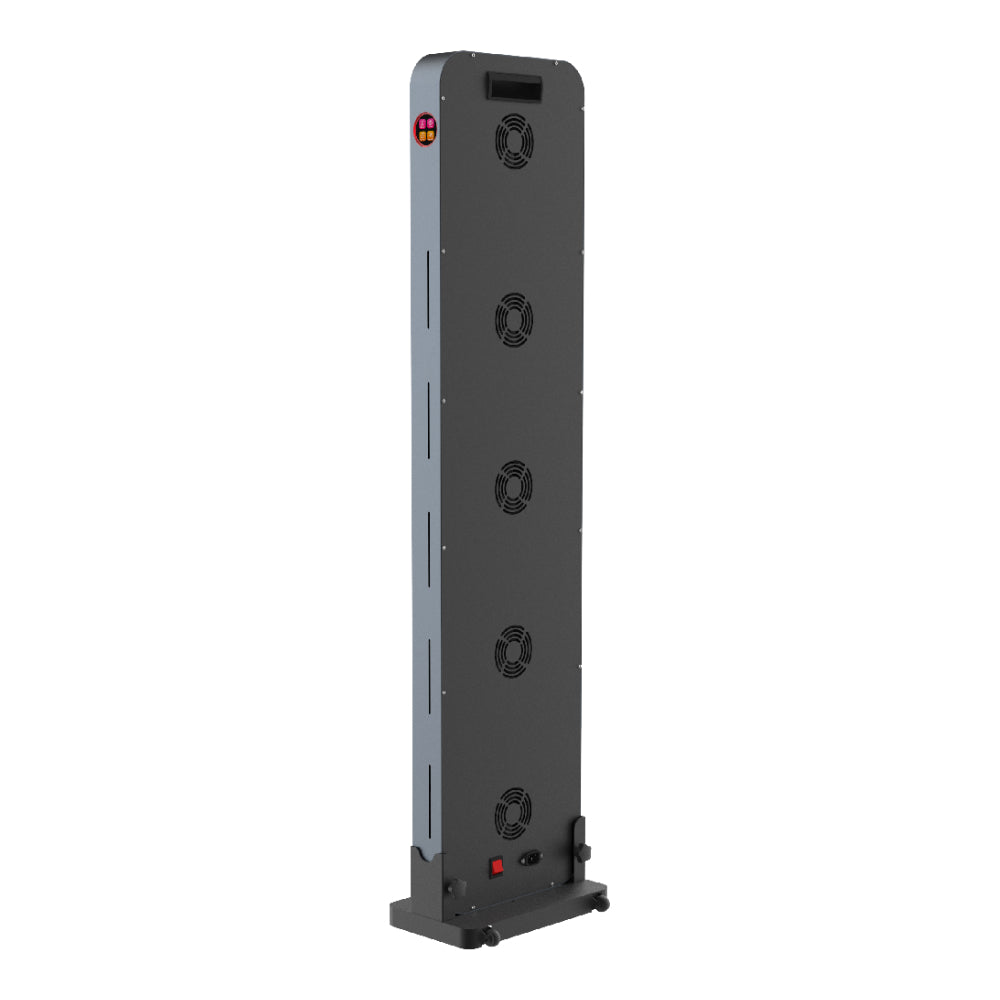

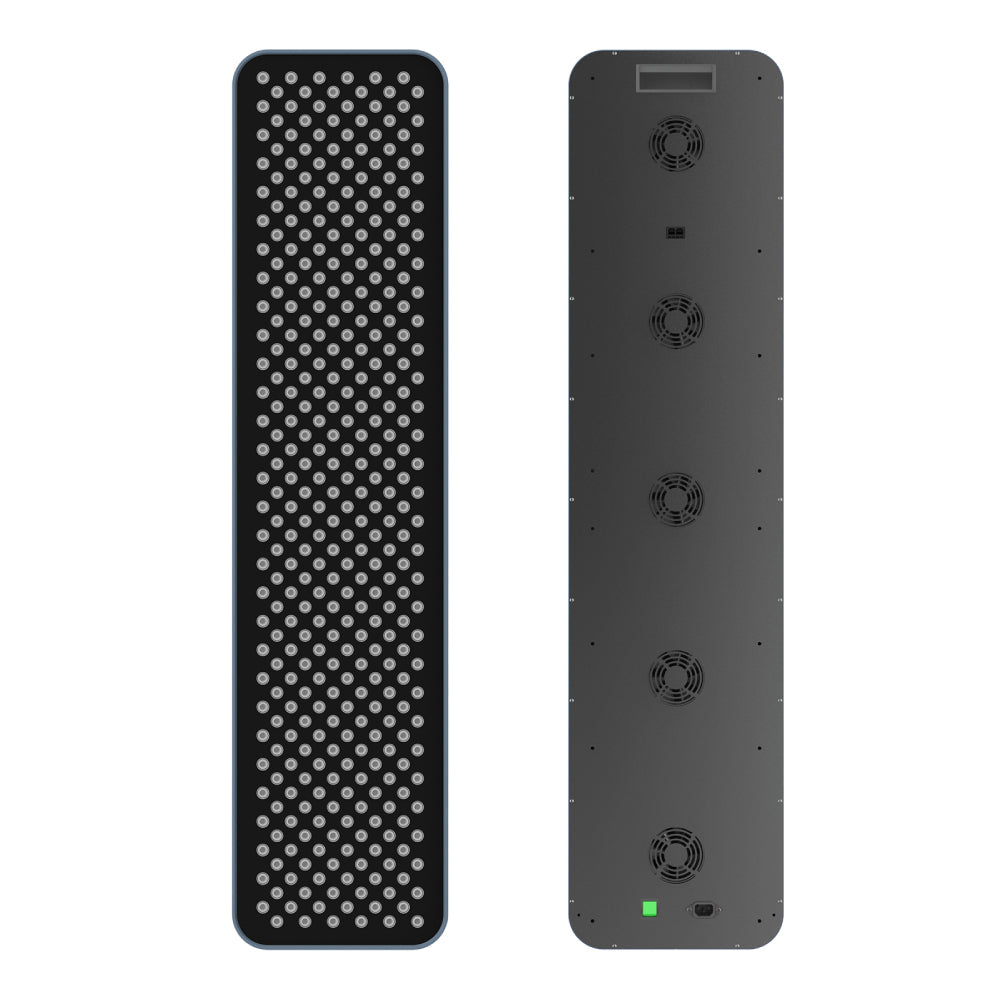

Product Description:
The Total Spectrum MAX features 360 LEDs and seven wavelengths: 480nm, 630nm, 660nm, 810nm, 830nm, 850nm, and 1064nm. Its larger design is suited for targeted use across areas such as the torso, thighs, and abdomen. The device includes adjustable pulsing, nine prebuilt modes, custom controls, a touch interface, remote control, and a 30-degree beam angle.
Features:
-
360 LEDs
-
Seven wavelengths: 480nm, 630nm, 660nm, 810nm, 830nm, 850nm, and 1064nm
-
480nm blue light
-
630nm and 660nm red light
-
810nm, 830nm, and 850nm near-infrared light
-
1064nm infrared light
-
Adjustable pulsing from 0–5,000 Hz
-
9 prebuilt performance modes
-
Custom mode with individual intensity and pulsing adjustments for four channels
-
Touch interface
-
Remote control
-
30-degree beam angle
-
No flicker
-
Approximately 0.0 μT EMF at 6 inches or greater
-
LED lifespan of 100,000 hours
-
AC 100–240V compatibility
-
Aluminum housing
-

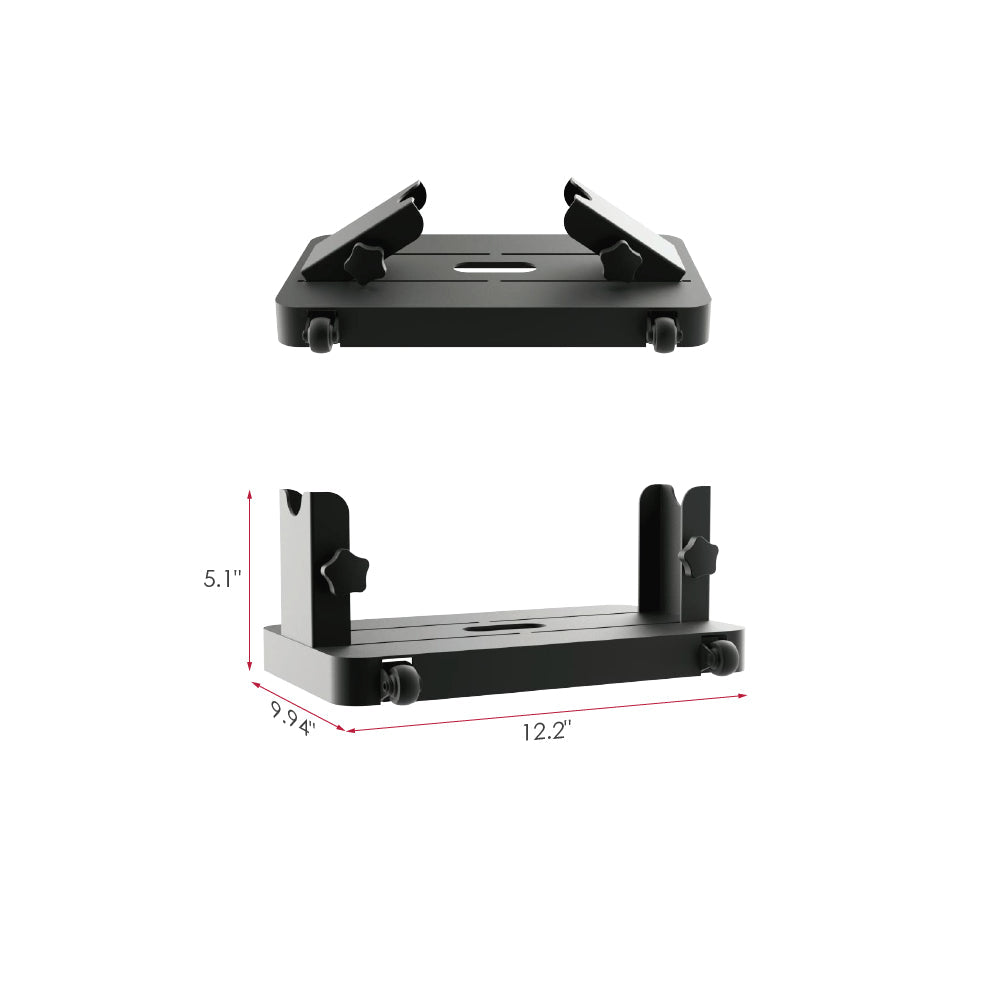

Stand and door hanging kit included
Specifications:
-
Model: Total Spectrum MAX
-
LED Count: 360
-
Wavelengths: 480nm, 630nm, 660nm, 810nm, 830nm, 850nm, 1064nm
-

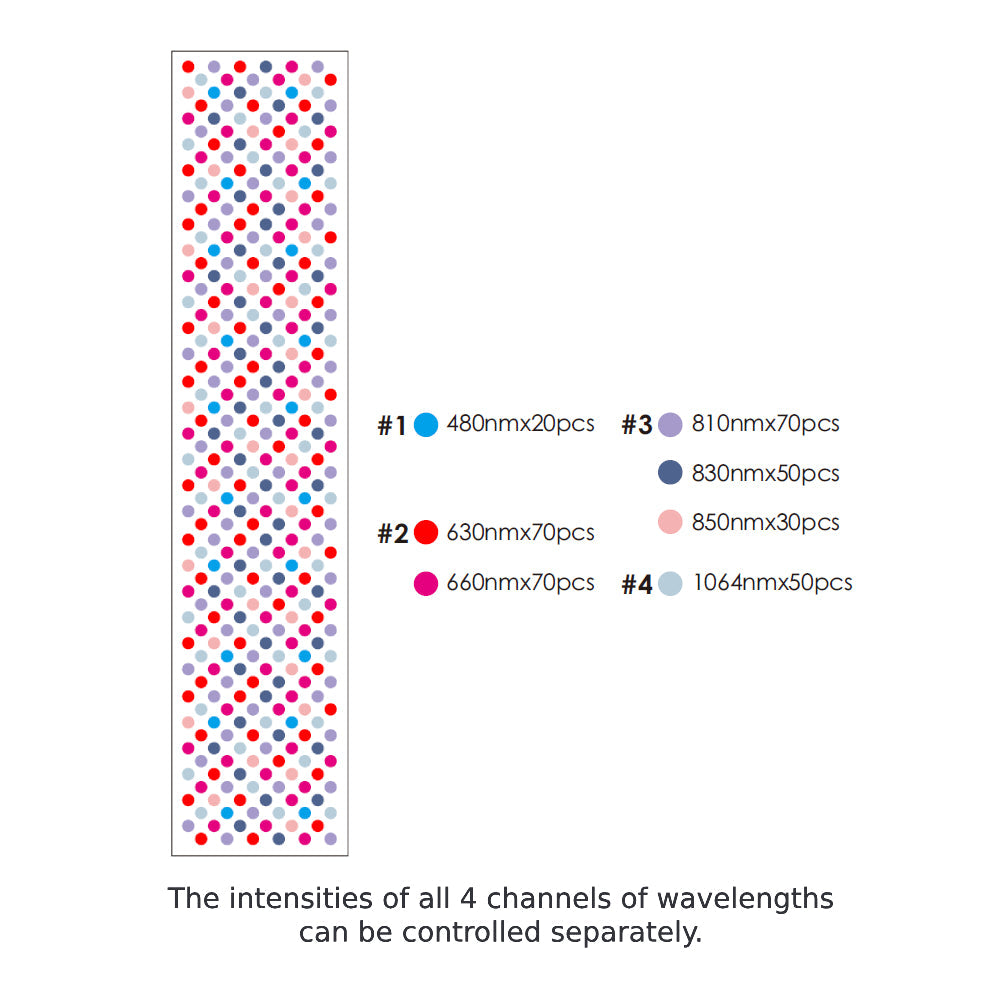

Wavelength Density: 480nm 6%; 630nm 19%; 660nm 19%; 810nm 19%; 830nm 14%; 850nm 9%; 1064nm 14%
-
Irradiance: 172 mW/cm² at 8 inches; 100.53 mW/cm² at 6 inches
-
Pulsing Range: 0–5,000 Hz
-
Beam Angle: 30 degrees
-
EMF: Approximately 0.0 μT at 6 inches or greater
-
Flicker: No flicker
-
LED Lifespan: 100,000 hours
-
Voltage: AC 100–240V
-

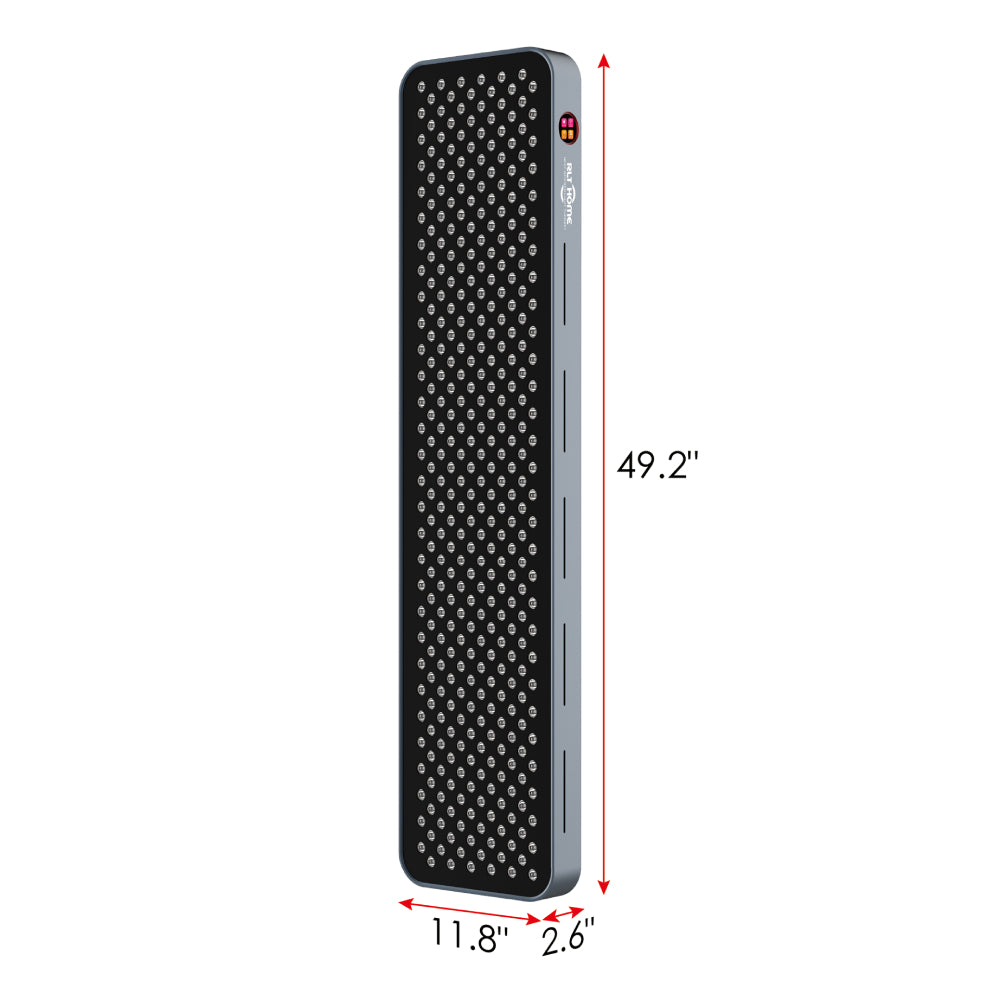

Device Dimensions: 1250 × 300 × 65 mm / 49.2" × 11.8" × 2.6"
-
Device Weight: 14 kg / 30.8 lbs
-
Shipping Dimensions: 1325 × 380 × 180 mm / 52" × 15" × 7"
-
Shipping Weight: 17.5 kg / 38.6 lbs
-
Housing Material: Aluminum
-
Certifications: RoHS and CE
-

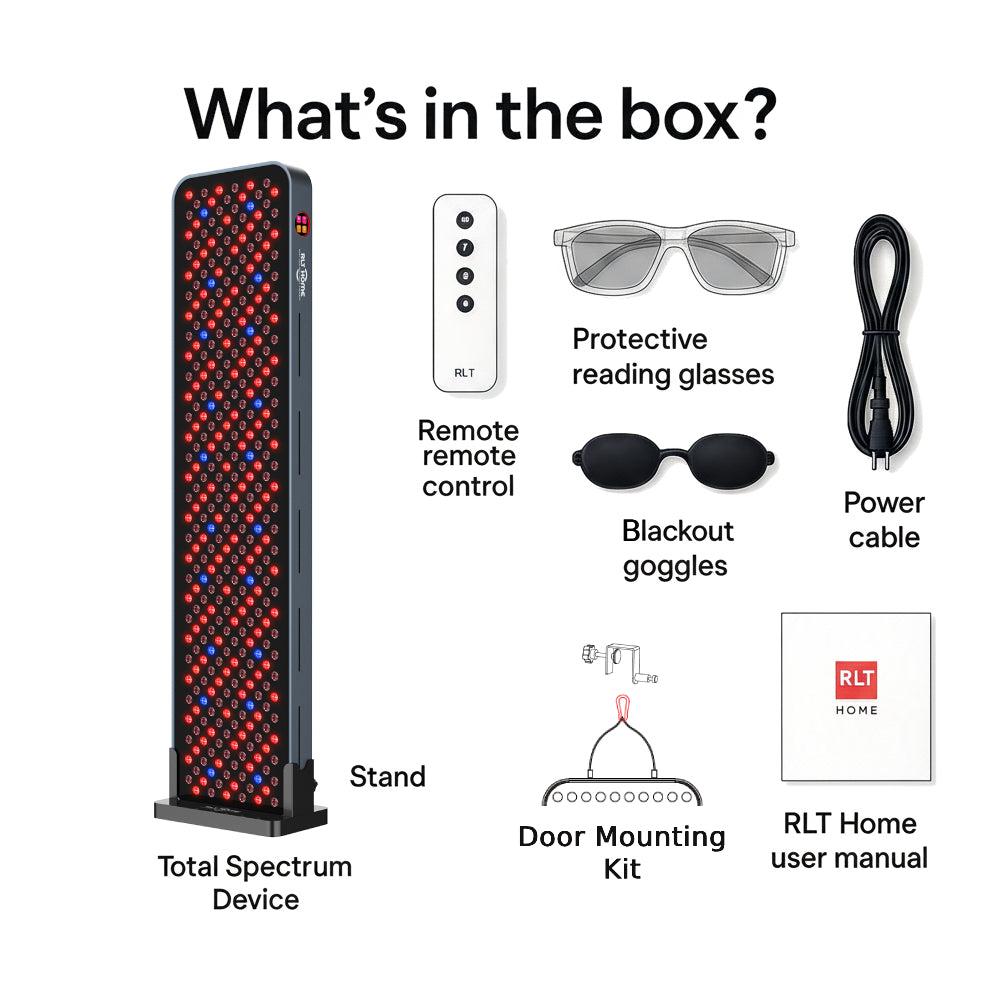

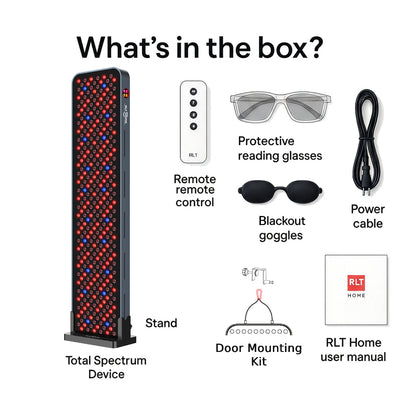

Included: Total Spectrum MAX device, stand, remote control, protective reading glasses, blackout goggles, door hanging kit, user manual, power cable
Assembly:

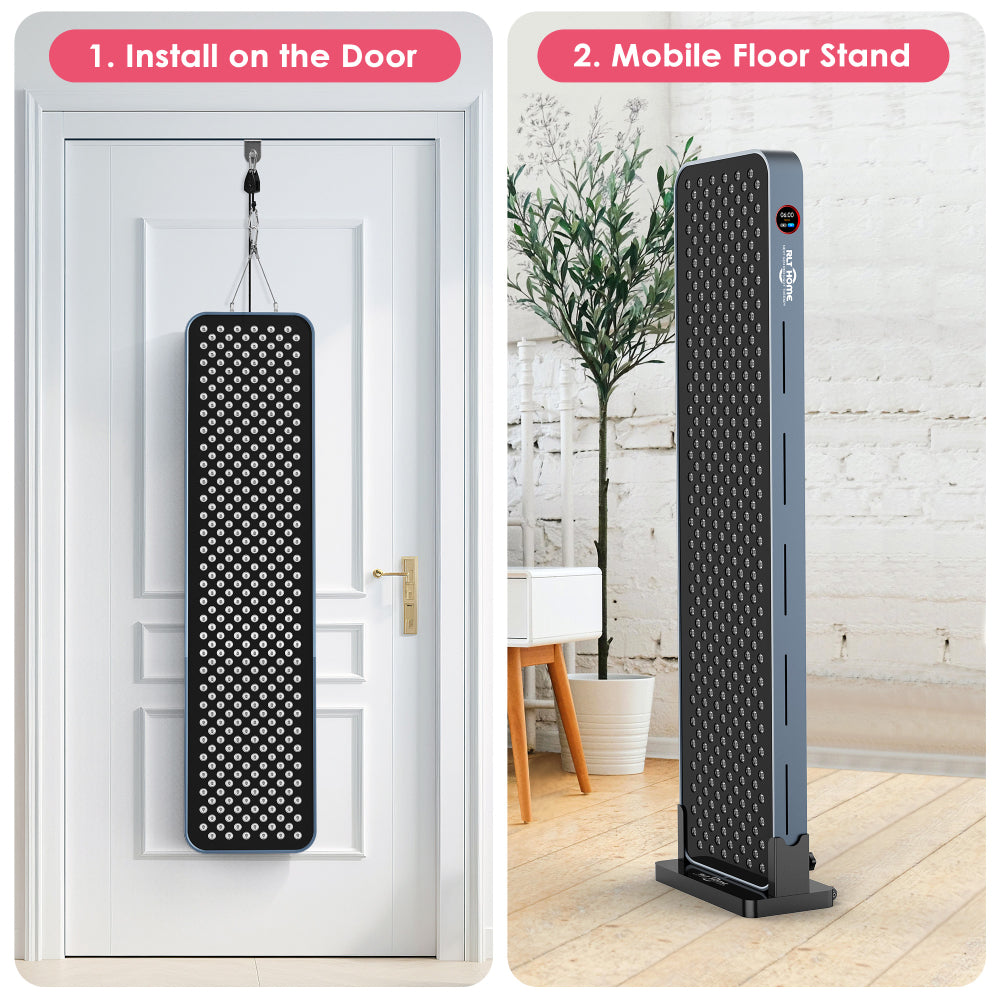

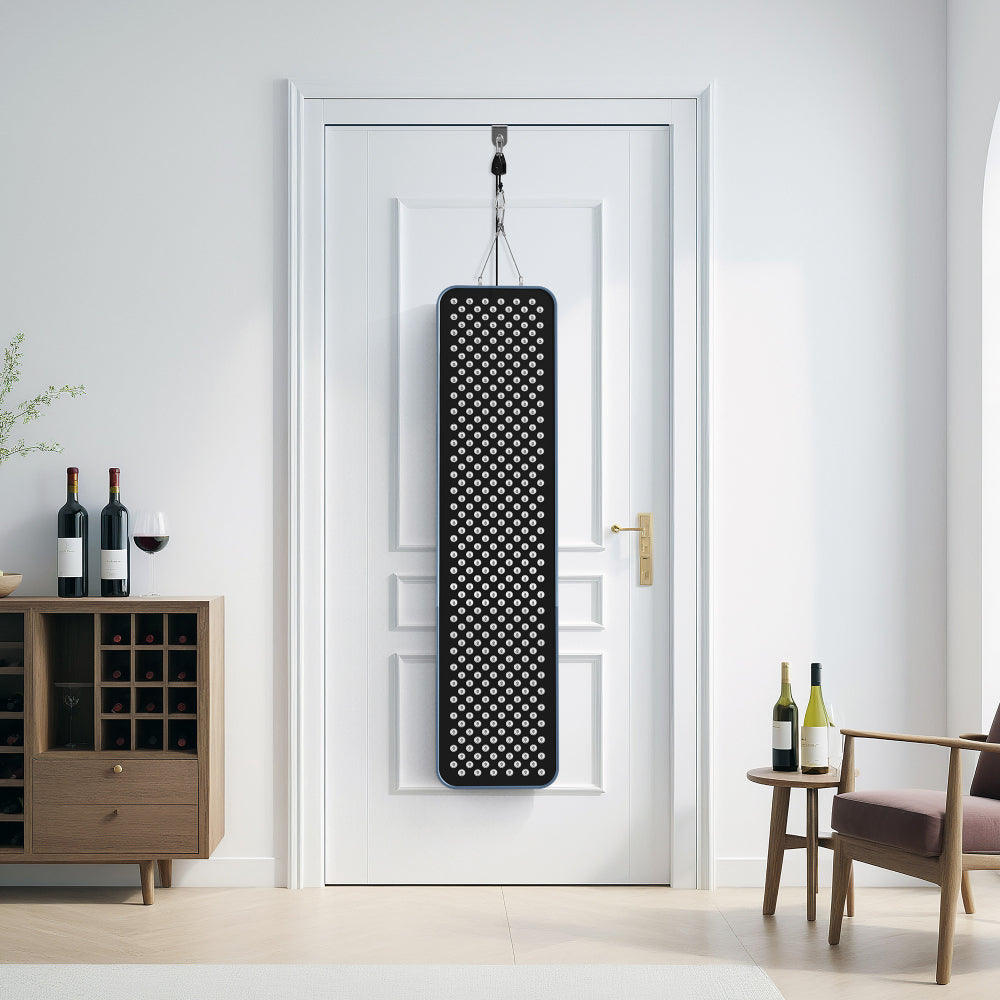

Includes a stand and door hanging kit. Setup and operating instructions are provided in the included user manual.
